| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WHATET |
| Certification: | ISO |
| Model Number: | WH-305 |
| Minimum Order Quantity: | 10000kilograms |
| Price: | CN¥24 - CN¥31 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

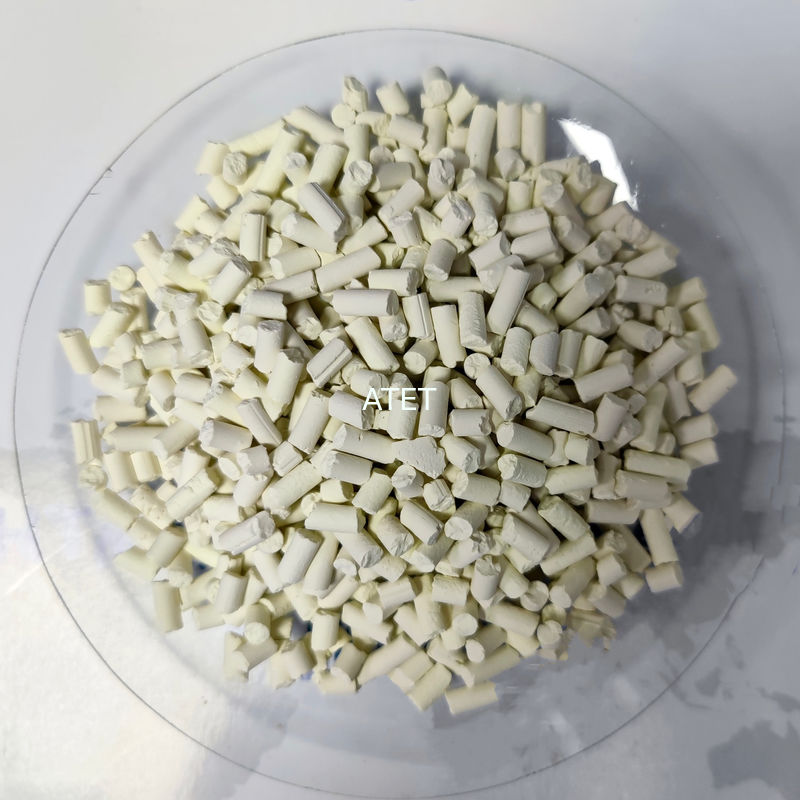

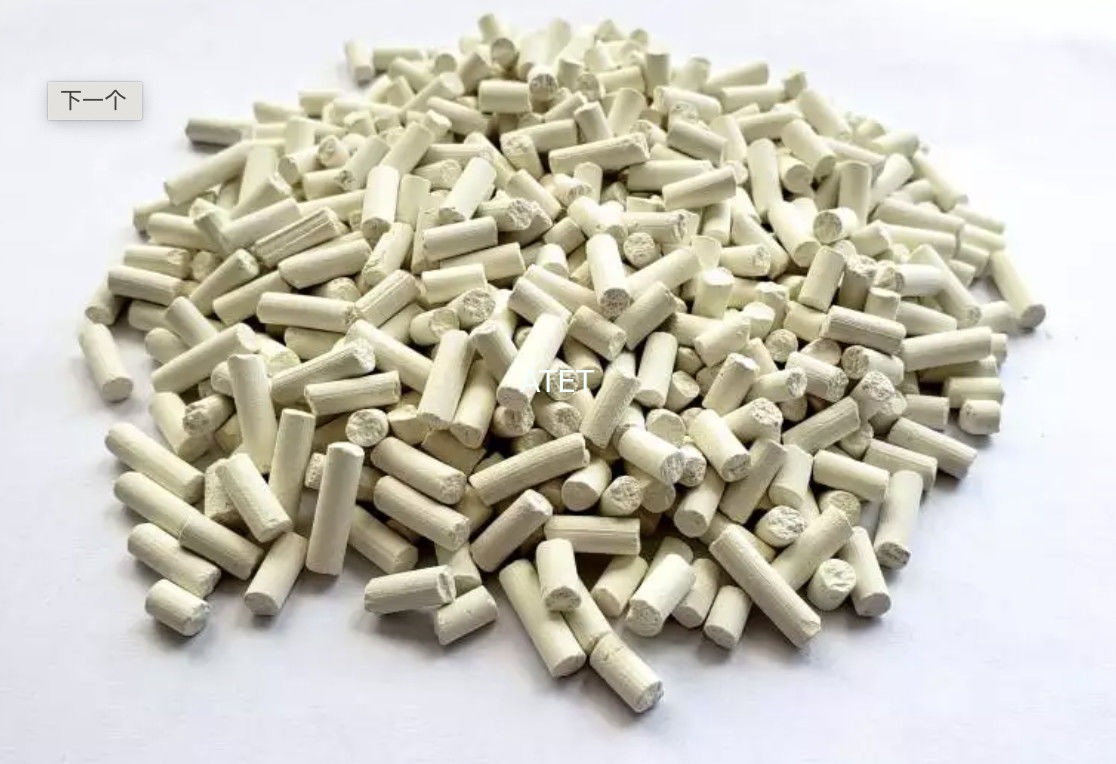

| Appearance: | Canary Or Greyish White, Cylindrical | Size: | Ø(3~4)× (5~8), Ø(4~5)× (5~8) Mm |
|---|---|---|---|
| Bulk Density: | 1.0~1.3 Kg/l | Radial Crush Strength: | ≥60 ( Ø(3~4)× (5~8) ) N/cm ，≥70 ( Ø(4~5)× (5~8) ) N/cm |
| Surface Area: | ≥25 M2/g | Name: | Desulfurization Agent |
| High Light: | Desulfurizing Agent,Desulfurization Agent,Zinc Oxide Desulfurizer |
||
Zinc Oxide Desulfurizer
Features and Scope of application
WH-305 desulfurization agent is used to remove hydrogen sulfide and partial organic sulfur from natural gas, synthetic gas, refinery gas, naphtha oil and etc. It was widely used in hydrogen unit, synthetic ammonia purification system and petroleum refining unit. The operation temperature is between 0℃ and 450℃. It has high desulfurization efficiency, high sulfur capacity and long life span.
Operating Conditions
| Subject | Index |
| Gaseous Space Velocity | ≤4000h-1 |
| Operating temperature | Noramal~ 150 ℃ |
| Liquid Space Velocity | ≤5h-1 |
| Temperature | 0~450℃ |
| Pressure | ≤10MPa |
| Recommended Bed Height-diameter Ratio | 0.35~3.5 |
Performance Index
Adsorption H2S Capacity: ≥20% (wt) (220℃) ≥35% (wt) (400℃)
